Citation:
Citation_Information:
Originator:
Pacific Islands Benthic Habitat Mapping Center (PIBHMC), Coral Reef Ecosystem Division (CRED), Pacific Islands Fisheries Science Center (PIFSC), National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA)
Publication_Date: 20100520
Title:
Bathymetric Position Index (BPI) Zones 5 m grid derived from gridded
bathymetry of Kure Atoll, Hawaii, USA.
Geospatial_Data_Presentation_Form: raster digital data
Online_Linkage: http://www.soest.hawaii.edu/pibhmc
Description:
Abstract:
BPI Zones are derived from a focal mean analysis on
bathymetry and slope. The grid is based on gridded (5 m cell size)
multibeam bathymetry, collected aboard R/V AHI, merged with seafloor
depths derived from IKONOS satellite imagery. BPI Zones
was was created using the Benthic Terrain Modeler
(
https://coast.noaa.gov/digitalcoast/tools/btm.html). Cell values
represent one of 4 classes (crest, depression, flat, slope) in an
index of seafloor terrains. This data set is for the bank top, edge and lagoon environments of Kure Atoll, Hawaii, USA.
The data were derived in support of NOAA Coral Reef Conservation
Program goals. Goal 1 is to map all U.S. Coral Reef Ecosystems.
This data set specifically addresses Objective 1 and 4: to develop
high-resolution benthic maps and to characterize priority deep
water reefs and associated habitats. This derivative of
bathymetry provides a GIS layer that may be used for benthic and
essential fish habitat characterization, and for the study of
geologic features. By combining the dataset with bathymetry,
backscatter, other derivatives, and in situ data, they
collectively compose benthic habitat maps which are designed to
be used to understand and predict moderate depth (~20 m to 150 m)
benthic habitats for different organisms that inhabit coral
reef ecosystems.
Supplemental_Information:
Gridded bathymetry data were collected aboard the R/V AHI
(Acoustic Habitat Investigator), a 25 ft survey launch owned and
operated by the NOAA Pacific Islands Fisheries Science Center in
Honolulu, HI and derived from IKONOS satellite
imagery. The metadata for the bathymetry is documented in
the product metadata: kur_5m.asc.
References:
Lundblad et al., 2006, A benthic terrain classification scheme for
American Samoa, Marine Geodesy, 29(2):89 - 111.
https://coast.noaa.gov/digitalcoast/tools/btm.html
Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 20000101
Ending_Date: 20060710
Currentness_Reference: ground condition
Status:
Progress: Complete
Maintenance_and_Update_Frequency: As needed
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: -178.45795
East_Bounding_Coordinate: -178.16778
North_Bounding_Coordinate: 28.58214
South_Bounding_Coordinate: 28.24721
Keywords:
Theme:
Theme_Keyword_Thesaurus: NCEI Geoportal Filter
Theme_Keyword: CoRIS_Metadata
Theme:
Theme_Keyword_Thesaurus: CRCP Project
Theme_Keyword:
Benthic Habitat Mapping and Characterization - Northwestern and Main Hawaiian Islands
Theme_Keyword: 1217
Theme:
Theme_Keyword_Thesaurus: CoRIS Theme Thesaurus
Theme_Keyword:
EARTH SCIENCE > Oceans > Bathymetry/Seafloor Topography > Bathymetric Position Index Zones
Theme:
Theme_Keyword_Thesaurus: None
Theme_Keyword: Bathymetric Position Index Zones
Theme_Keyword: Bathymetry
Theme_Keyword: Multibeam sonar
Theme:
Theme_Keyword_Thesaurus: CoRIS Discovery Thesaurus
Theme_Keyword: Geographic Information > Habitats
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: imageryBaseMapsEarthCover
Theme_Keyword: 010
Place:
Place_Keyword_Thesaurus: None
Place_Keyword: Kure Atoll
Place_Keyword: Hawaii
Place_Keyword: Northwestern Hawaiian Islands
Place_Keyword: United States of America
Place:
Place_Keyword_Thesaurus: CoRIS Place Thesaurus
Place_Keyword:
OCEAN BASIN > Pacific Ocean > Central Pacific Ocean > Northwestern Hawaiian Islands > Kure Atoll (28N178W0001)
Place_Keyword:
COUNTRY/TERRITORY > United States of America > Hawaii > Honolulu > Kure Atoll (28N178W0001)
Place:
Place_Keyword_Thesaurus: CoRIS Region
Place_Keyword: NWHI
Access_Constraints: None
Use_Constraints:
These data are not to be used for navigation purposes. Please acknowledge the NOAA Pacific Islands Fisheries
Science Center (PIFSC) Coral Reef Ecosystem Division (CRED) and
the Pacific Islands Benthic Habitat Mapping Center, and the Joint
Institute for Marine and Atmospheric Research (JIMAR) and School
of Ocean and Earth Science and Technology (SOEST), University of
Hawaii as the sources of this information.

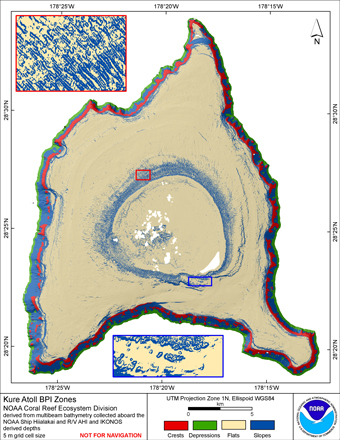

Browse_Graphic:
Browse_Graphic_File_Name:
Browse_Graphic_File_Description: Gridded Bathymetry Derivative
Browse_Graphic_File_Type: JPEG
Data_Set_Credit: NOAA PIFSC CRED PIBHMC, JIMAR, and SOEST
Security_Information:
Security_Classification_System: Not applicable
Security_Classification: Unclassified
Security_Handling_Description: Not applicable
Native_Data_Set_Environment:
ArcGIS ASCII file, derived from bathymetry and
slope in ArcGIS 9.3 (Spatial Analyst and Benthic Terrain Modeler)
